For concentrated acids

  • Branch: Industrie
  • Branch: Oberflächentechnik
  • Branch: Landwirtschaft
  • Branch: Farben und Lacke
  • Branch: Chemie

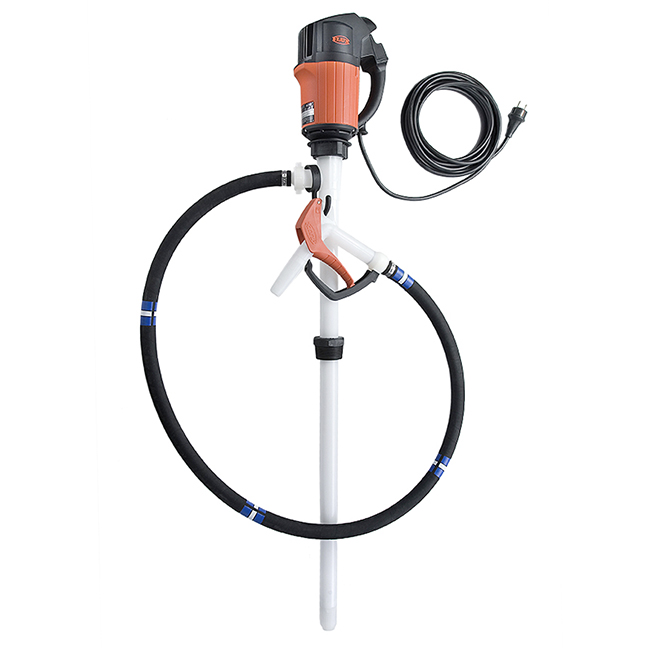

Pre-assembled pump set for pumping concentrated acids from 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430 with mechanical seal, outer tube in polyvinylidene fluoride and commutator motor F 458, hose, hand nozzle and compression gland.

Technical data:

  • Flow rate: max. 40 l/min1
  • Delivery head: max. 9,5 mwc
  • Viscosity: min. 1 mPas - max. 600 mPas
  • Outer tube diameter: max. 40 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Polyvinylidene fluoride
  • Media / Fluids: Acids, Aqueous salt solutions
  • Seal: with mechanical seal
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

  • Pump with mechanical seal
  • Pump can be fast and without tools disassembled into two parts
  • Steel core in the inner tube prevents longitudinal changes at high and low temperatures
  • Robust motor with aluminium housing and special corrosion-resistant painting
  • Motor is completely closed

Benefits

  • No medium gets into the inner tube of the pump
  • No carrying-over of the medium - one pump can be used for different media
  • Pump can be  quickly and easily  cleaned
  • No corrosion on motor due to aggressive vapours
  • Drum pump F 430 PVDF 40/33 in polyvinylidene fluoride
  • Commutator motor F 458, 230 Volt, 50 Hz, 460 Watt
  • Chemistry hose DN 19, 2 m long
  • Hand nozzle polyvinylidene fluoride (PVDF)
  • Compression gland polypropylene (PP conductive)
  • Chloric acid
  • Hydrofluoric acid (up to 40%)
  • Sodium hypochlorite
  • Nitric acid (up to 10%)
  • Sulfuric acid (up to 90%)
