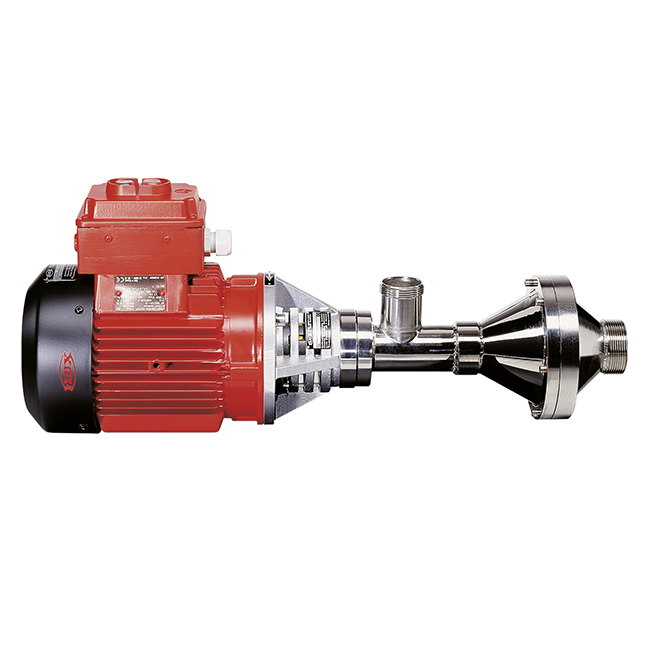

F 620 TR

For horizontal use

Branch: IndustrieBranch: OberflächentechnikBranch: PetrochemieBranch: Wasser-/AbwasseraufbereitungBranch: Farben und LackeBranch: Chemie
  • .

For pumping and conveying of large quantities of heavy flammable liquids out of containers, tanks, open containers etc. The pump is used either horizontally mounted onto a base plate or fixed vertically.

Technical data:

  • Flow rate: max. 383 l/min1
  • Delivery head: max. 12 mwc1
  • Viscosity: min. 1 mPas - max. 2500 mPas1
  • Diameter pump housing: max. 30 mm2
  • Diameter mounting flanges: max. 185 mm2
  • Materials outer tube: Stainless steel
  • Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
  • Seal: mechanical seal
  • Container: Tanks > 1000 liters
  • 1 dependent on pump model, motor and medium
  • 2 dependent on pump model

* AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA) *

Product attributes

  • For pumping large quantities of heavy flammable liquids
  • With console for dry installation
  • With threaded connection on inlet and discharge side
  • Consisting of an inner and outer tube as well as a drive shaft mounted in the inner tube
  • Shaft seal with mechanical sealsin ceramic oxide, O-rings made of FKM
  • Depending on the model, available with threaded or flanged connections at suction and discharge side

Benefits

  • Can be used  horizontally or vertically
  • Pumps also fluids containing solids
  • Motor can be changed
  • Pump is hermetically sealed
